Axil Full Cabinet PDU (Basic)

• Vertical Mount, 1360 x 45 x 45 mm
• 32 Amps
• IEC 60309 Plug
• 20 x C13 sockets (locking)
• 4 x C19 sockets

Download Brochure

Axil Full Cabinet PDU (Metered)

• Vertical Mount, 1360 x 45 x 45 mm
• 32 Amps
• IEC 60309 Plug
• 20 x C13 sockets (locking)
• 4 x C19 sockets
• Ammeter: Amps, Volts, kWh

Download Brochure

Axil Full Cabinet PDU (Managed)

• Vertical Mount, 1360 x 45 x 45 mm
• 32 Amps
• IEC 60309 Plug
• 20 x C13 sockets (locking)
• 4 x C19 sockets
• Ammeter: Amps, Volts, kWh
• Optional: Temp, Humidity
• IP-PDU Function
• Software: PDU View

Download Brochure

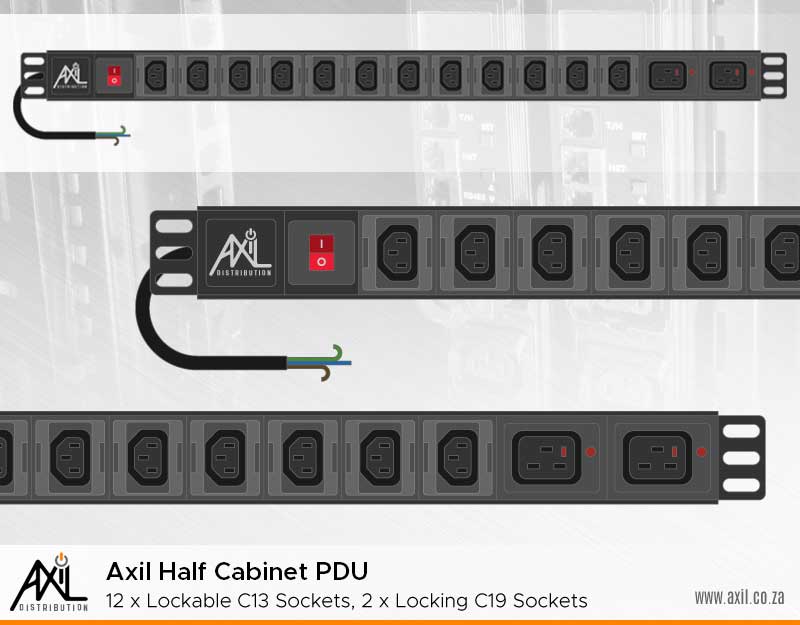

Axil Half Cabinet PDU

• Vertical Mount, 700 x 45 x 45 mm
• 16 Amps
• 1.5 m input cable (no plug)
• 12 x Lockable C13 sockets
• 2 x Locking C19 sockets

Download Brochure

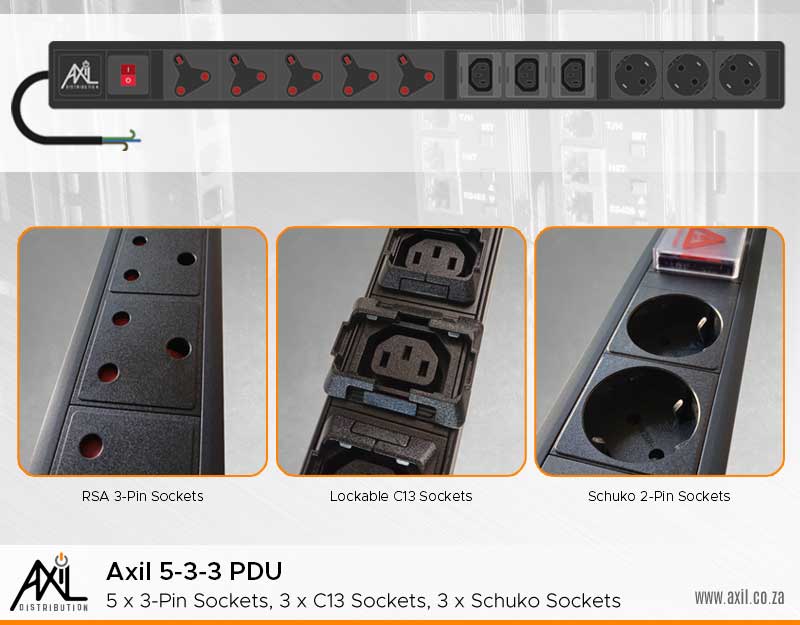

Axil 5-3-3 PDU

• Vertical Mount, 630 x 65 x 45 mm
• 16 Amps
• 1.5 m input cable (no plug)
• 5 x RSA 3-Pin sockets (type M)
• 3 x Lockable C13 sockets
• 3 x Schuko 2-Pin sockets

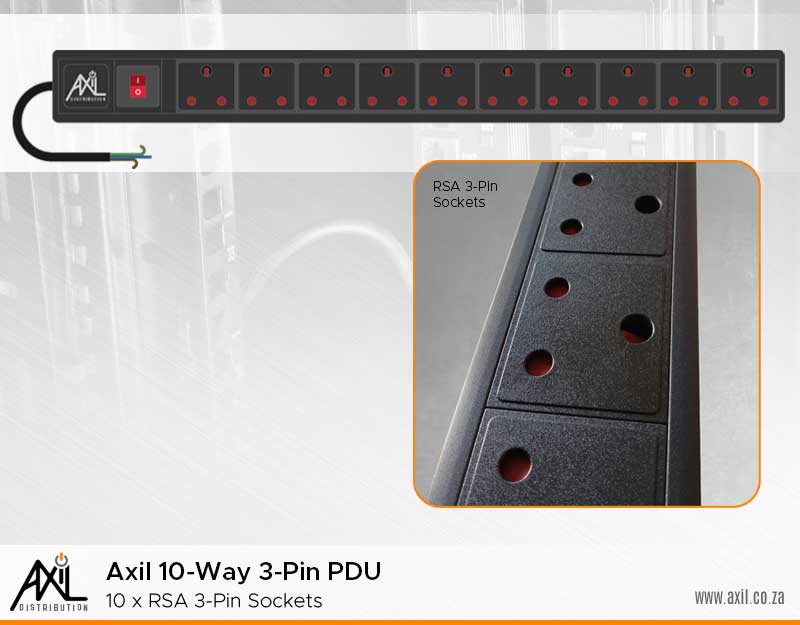

Axil 10-Way 3-Pin PDU

• Vertical Mount, 620 x 65 x 45 mm
• 16 Amps
• 1.5 m input cable (no plug)
• 10 x RSA 3-Pin sockets (type M)

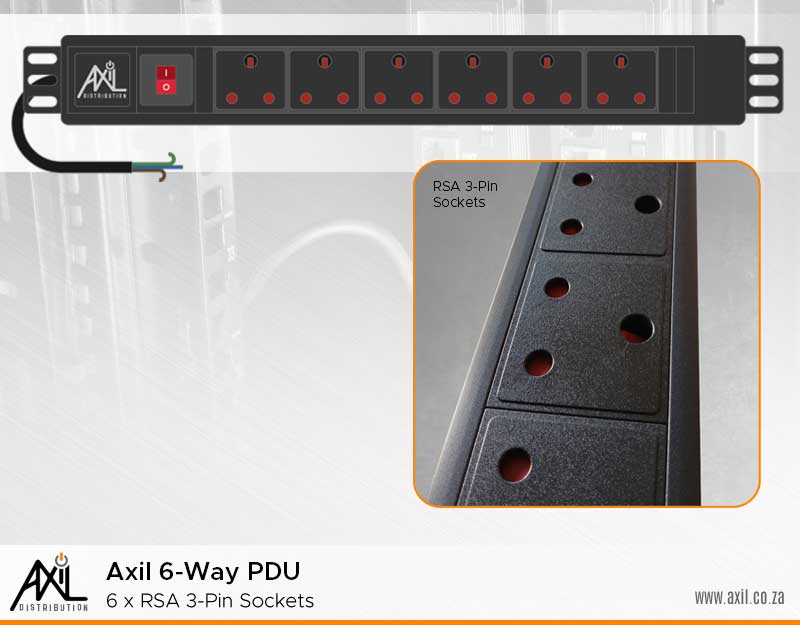

Axil 6-Way 3-Pin PDU

• Vertical Mount, 440 x 65 x 45 mm
• 16 Amps
• 1.5 m input cable (no plug)
• 6 x RSA 3-Pin sockets (type M)

Axil 10-Way PDU

• Vertical Mount, 520 x 45 x 45 mm
• 16 Amps
• No input cable / No plug
• 10 x C13 sockets (locking)

Axil 9-Way PDU

• Rack Mount, 440 x 45 x 45 mm
• 10 Amps
• 1 m input cable with C14 plug
• 9 x C13 sockets

Axil 8-Way PDU

• Rack Mount, 440 x 45 x 45 mm
• 10 Amps
• 1 m input cable with C14 plug (available without cable or plug)
• 8 x C13 sockets (locking)

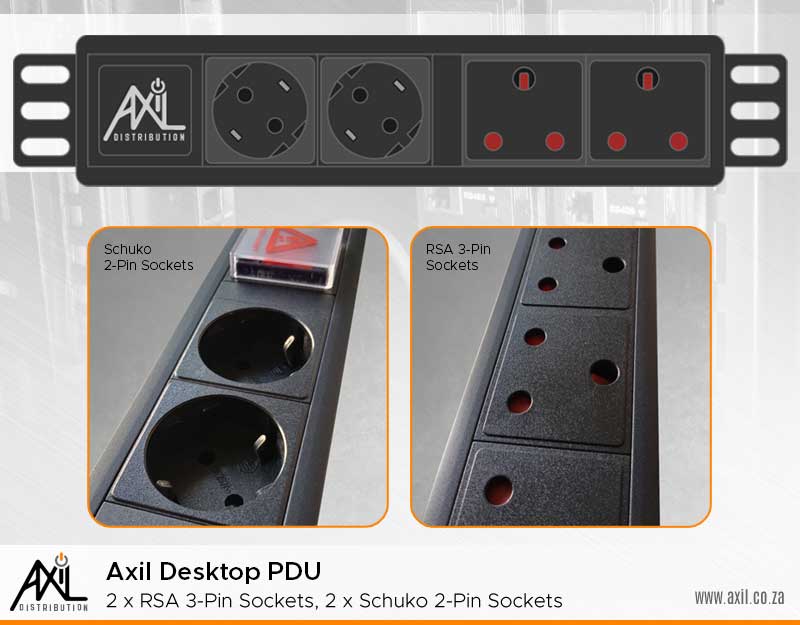

Axil Desktop PDU

• 255 x 65 x 45 mm
• 16 Amps
• No input cable / No plug
• 2 x Schuko 2-Pin sockets
• 2 x RSA 3-Pin sockets (type M)

Axil 8-Way 2-Pin PDU

• Rack Mount, 440 x 45 x 45 mm
• 10 Amps
• No input cable / No plug
• 8 x Schuko 2-Pin sockets

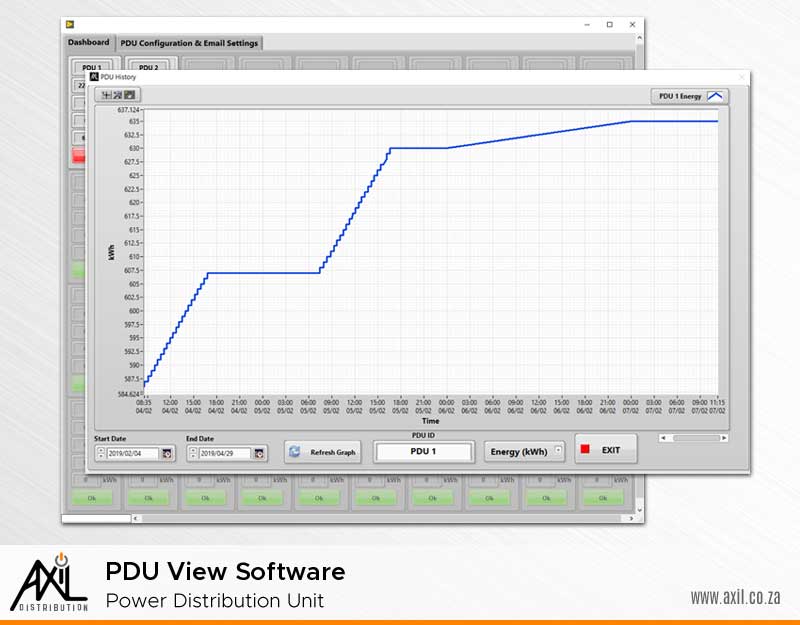

Axil PDU View Software

Complete Remote Power Management. Monitor all your rack PDUs, floor PDUs with a simple and intuitive web-based dashboard.

Download Brochure
