Axil 9Ah 12V VRLA Batteries

Axil 9Ah 12V Valve Regulated Lead Acid Batteries

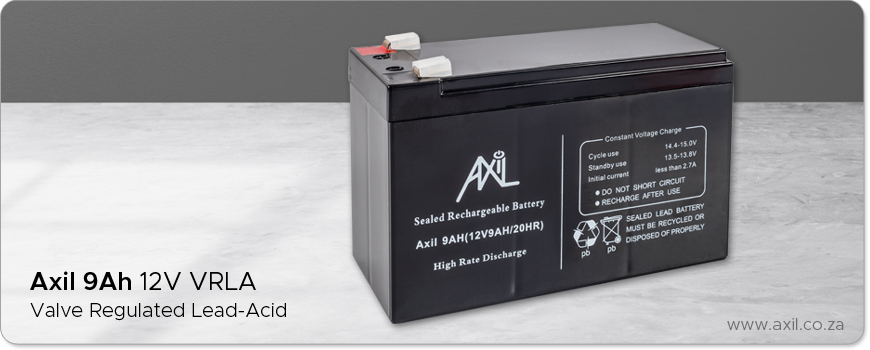

9Ah 12V VRLA Battery
Valve Regulated Lead Acid (VRLA) rechargeable batteries with Absorbed Glass Mat (AGM) technology are based on a lead dioxide system, with a dilute sulfuric acid electrolyte absorbed and immobilized within the separators and plates. In the event of overcharging, which may generate hydrogen and oxygen gases, integrated one-way safety valves allow controlled gas release to prevent excessive pressure buildup. Under normal operating conditions, the battery remains fully sealed - ensuring maintenance-free, leak-proof performance and enabling operation in any orientation.

Download Brochure

Technical Specification
Nominal Voltage 12V
Number of Cells 6
Nominal Capacity 9Ah (20 hour rate 0.45A, 10.5V)
Terminal F2
Max. discharge current 135A (5 sec.)
Internal resistance Fully charged battery at 25℃, ≤ 18 mΩ
Self discharge @25℃ (77 °F) 3% of capacity declined per month at 20℃ (average)
Charge method @25℃ (77 °F) Cycle use 14.5 - 14.9VPC
Dimension (L x W x H) 151 x 65 x 100 mm
Weight (approximate) ± 2.50 Kg

  • Absorbent Glass Mat (AGM) technology enables up to 99% gas recombination, eliminating the need for electrolyte maintenance or water topping.

  • Approved for air transport, compliant with IATA/ICAO Special Provision A67.

  • UL-recognized component for assured safety and reliability.

  • Flexible installation - can be mounted in any orientation.

  • Advanced grid design using lead-calcium-tin alloy for high power density and performance.

  • Extended service life, suitable for both float and cyclic applications.

  • Completely maintenance-free operation.

  • Low self-discharge rate for longer shelf life and standby readiness.

  • Backup & Standby Power

  • Renewable Energy Storage

  • Mobility & Transportation

  • Industrial & Commercial Equipment

  • Automotive & Marine
